CONCRETE Structures is what makes a nation strong. It is a category of steel used for making construction materials in a variety of shapes. Parallel Flange Beams & Columns, Channels, and Angles are some of the widely used shapes. Balajee Group takes pride in adding this strength to India’s infrastructure.

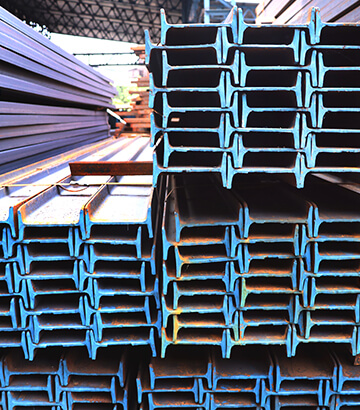

Parallel Flange
Beams & Columns
Beams carry vertical gravitational loads and horizontal loads as well. The loads carried by the beam are transferred to adjacent columns which then transfer the force to adjacent structural compression units.
- Commercial and residential construction projects
- Trailer and truck bed framing
- As support frames and columns for trolley ways, lifts, and hoists
- Mezzanines and platforms
- As support beams in columns and bridges
- Machine bases
- Freight cars
Wide dimensional range
Superior weldability
Cost-effective
Corrosion-resistant
High strength-to-weight ratio
Multiple sectional weights
| SIZE IN MM | SECTION WEIGHT (KG/MTR) | SECTION AREA | W-T IN MM | F-T IN MM |
|---|---|---|---|---|
| 100 X 50 | 8.9 | 11.4 | 4.7 | 7 |
| 125 X 70 | 13.3 | 17 | 5 | 8 |
| 150 X 75 | 15 | 19.1 | 5 | 8 |
| 175 X 85 | 19.6 | 25 | 5.8 | 9 |
| 200 X 100 | 24.2 | 30.8 | 5.7 | 10 |
| 250 X 125 | 37.3 | 47.5 | 5.9 | 12.5 |
| 300 X 140 | 46 | 58.6 | 7.7 | 13.1 |
| RSJ 116 X 100 | 23 | 29.9 | 8.4 | 10 |
| HB 152 X 152 | 30.6 | 39 | 8.4 | 9 |
| HB 152 X 152 | 34.6 | 44.1 | 11.8 | 9 |
| HB 152 X 152 | 37.1 | 47.4 | 7.9 | 11.9 |
Channels
Channels provide superior structural support, making them ideal for frames and braces used in machinery, enclosure, vehicle, building, and structural support applications.
- Truck and trailer frame supports
- Equipment and machinery frame supports
- Building frames and other support components
- Bridge
- Freight cars
- Poles
Mild to high tensile strength
Wide dimensional range
Superior weldability
Corrosion-resistant
| RANGE (IN MM) | SIZE (IN MM) | SECTION WEIGHT (KG/MTR.) | SECTION AREA | W-T (IN MM) | F-T (IN MM) |
|---|---|---|---|---|---|
| M.S CHANNEL 75 | 75 X 40 | 7.14 | 9.1 | 4.8 | 7.5 |
| M.S CHANNEL 100 | 100 X 50 | 9.56 | 12.2 | 5 | 7.7 |
| M.S CHANNEL 125 | 125 X 65 | 13.1 | 1607 | 5.3 | 8.1 |
| M.S CHANNEL 150 | 150 X 75 | 16.8 | 21.3 | 5.7 | 9 |
| M.S CHANNEL 200 | 220 X 75 | 22.3 | |||
| M.S CHANNEL 250 | 250 X 82 | 34.2 | |||
| M.S CHANNEL 300 | 300 X 90 | 36.3 |
Angles
Angles are ideal for structural applications, general fabrication, machining, and repairs.
- Transmission towers and lines
- Buildings, bridges, and others structures for support
- General structural use in construction
- Transportation frames and corners
- Support frames that require welding, riveting or bolting on bridges and buildings
- Machinery and equipment frames, braces, and corners
- Precipitators
Wide dimensional range
Superior weldability
Excellent surface finish
Close dimensional tolerances
Formable and machinable
| RANNE (IN MM) | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|
| ANGLE 35 | 1.6 | 2.1 | 2.6 | 3 | ||||||
| ANGLE 40 | 1.8 | 2.4 | 3 | 3.5 | ||||||
| ANGLE 45 | 2.1 | 2.7 | 3.4 | 4 | ||||||
| ANGLE 50 | 2.3 | 3 | 3.8 | 4.5 | 5.2 | 6 | ||||
| ANGLE 55 | 4.1 | 4.9 | 6 | 7.9 | ||||||
| ANGLE 60 | 3.7 | 4.5 | 5.4 | 7 | 8.6 | |||||
| ANGLE 65 | 4.9 | 5.8 | 8 | 9.4 | ||||||
| ANGLE 70 | 5.3 | 6.3 | 7.4 | 8 | 10.2 | |||||
| ANGLE 75 | 5.7 | 6.8 | 9 | 11 | ||||||
| ANGLE 80 | 7.3 | 10 | 11.8 | 14 | ||||||
| ANGLE 90 | 8.2 | 11 | 13.4 | 16 | ||||||
| ANGLE 100 | 9.2 | 11 | 12 | 14.9 | 18 | 22 | ||||
| ANGLE 110 | 13 | 16.6 | 20 | 22.7 |
M.S.
Flat
In synchronization with the set industry standards, we provide flats that are precisely manufactured using high-grade mild steel and latest technology. Owing to their anti- corrosive and simple installation features, these flats are widely appreciated by our precious clients. Moreover, to ensure the best quality, the offered flats are tested by our quality experts against different quality parameters.
| WIDTH (IN MM) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.28 | 0.38 | 0.47 | 0.56 | |||||||||||
| 16 | 0.38 | 0.5 | 0.63 | 0.75 | |||||||||||
| 20 | 0.47 | 0.63 | 0.79 | 0.94 | |||||||||||
| 25 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.4 | ||||||
| 30 | 0.7 | 0.9 | 1.2 | 1.4 | 1.6 | 1.9 | 2 | 2.4 | 2.8 | 3.8 | |||||
| 32 | 0.8 | 1 | 1.3 | 1.5 | 1.7 | 2 | 2.3 | 2.5 | 3 | 4 | |||||
| 35 | 0.8 | 1.1 | 1.4 | 1.6 | 1.9 | 2.2 | 2.5 | 3.3 | 4.4 | 5 | 5.6 | ||||
| 40 | 0.9 | 1.3 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.8 | 4.7 | 5 | 5.6 | 6.3 | ||
| 45 | 1.1 | 1.6 | 2 | 2.4 | 2.5 | 2.8 | 3.2 | 3.5 | 4.2 | 5.3 | 5.6 | 6.4 | 7.1 | 8.8 | |
| 50 | 1.2 | 1.7 | 2.4 | 2.6 | 2.7 | 3.1 | 3.5 | 4.3 | 4.7 | 6.5 | 6.3 | 7.1 | 7.8 | 9.8 | |
| 55 | 1.3 | 1.9 | 2.4 | 2.8 | 3 | 3.5 | 3.9 | 4.3 | 5.2 | 7.1 | 6.9 | 7.8 | 8.6 | 10.8 | |
| 60 | 1.4 | 3 | 3.3 | 3.8 | 4.2 | 4.7 | 5.6 | 7.5 | 8.5 | 9.4 | 11.8 | ||||
| 63 | 3 | 3.4 | 4 | 4.6 | 4.9 | 5.9 | 7.6 | 7.9 | 8.9 | 9.9 | 12.4 | ||||
| 65 | 3.1 | 3.6 | 4.4 | 4.9 | 5.1 | 6.1 | 8.2 | 9.2 | 10.2 | 12.8 | |||||
| 70 | 3.3 | 4.4 | 5.3 | 5.5 | 6.6 | 8.8 | 9.9 | 11 | 13.7 | ||||||
| 75 | 3.5 | 4.7 | 5.9 | 7.1 | 9.4 | 8.6 | 11.8 | 12.9 | 14.7 | ||||||
| 80 | 3.8 | 5 | 6.3 | 7.5 | 10 | 11.3 | 12.6 | 13.8 | 15.7 | ||||||
| 90 | 4.2 | 5.7 | 7.1 | 8.5 | 11.3 | 12.7 | 14.1 | 14.7 | 17.7 | ||||||
| 100 | 4.7 | 6.3 | 7.8 | 9.4 | 12.6 | 14.1 | 15.7 | 17.3 | 19.6 | ||||||
| 110 | 5.2 | 6.9 | 8.6 | 10.4 | 13.8 | 15.5 | 17.3 | 19 | 21.6 | ||||||
| 120 | 5.7 | 7.5 | 9.4 | 11.3 | 15.1 | 17.7 | 18.8 | 20.7 | 23.6 | ||||||
| 125 | 5.9 | 7.8 | 9.8 | 11.8 | 15.7 | 18.4 | 19.6 | 21.6 | 24.5 | ||||||
| 130 | 10.2 | 12.2 | 16.3 | 20.4 | 25.5 | ||||||||||
| 140 | 11 | 13.2 | 17.7 | 27.5 | |||||||||||
| 150 | 11.8 | 14.1 | 18.8 | 29.5 |
